Ingress traffic with Kong Mesh

Kong Mesh provides two methods to manage ingress traffic, also known as north/south traffic. Both use a gateway proxy that sits between external clients and your services in the mesh.

• Delegated gateway: Uses any existing gateway proxy, like Kong Gateway.
• Built-in gateway: Runs Envoy instances as a gateway proxy.

Gateways exist within a mesh. If you have multiple meshes, each mesh requires its own gateway. You can connect your meshes together using cross-mesh gateways.

The following diagrams show the difference between built-in and delegated gateway deployments. Solid lines represent traffic not managed by Kong Mesh; dashed lines represent mesh-managed traffic between data plane proxies.

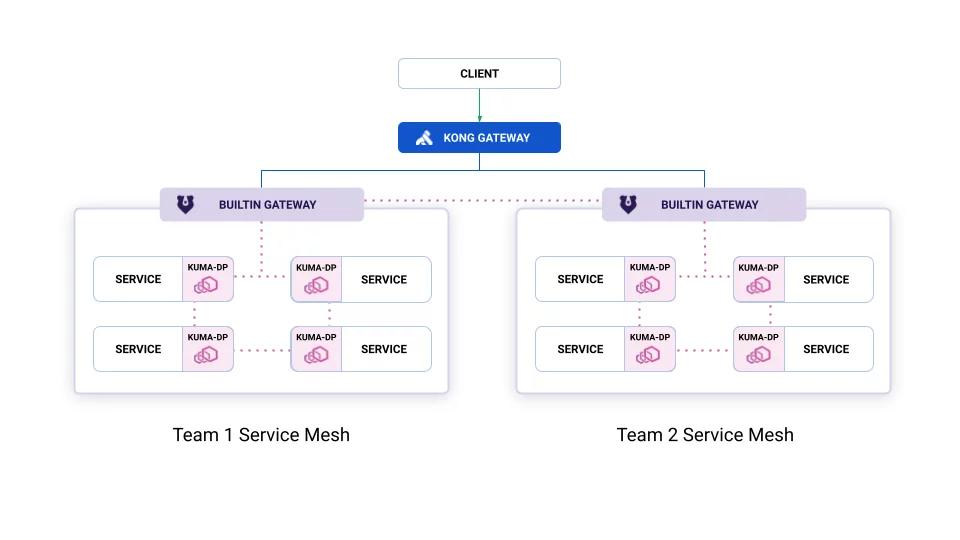

Kong Gateway at the edge routes to built-in gateways running as Envoy proxies inside each service mesh.


flowchart LR
    CLIENT([Client])
    KGW[Kong Gateway]
    CLIENT --> KGW

    subgraph M1[Team 1 service mesh]
        BG1[Built-in gateway]
        subgraph sg1a[ ]
            direction LR
            S1[Service] --- D1[KUMA-DP]
            D1 <-.-> D2[KUMA-DP]
            D2 --- S2[Service]
        end
        subgraph sg1b[ ]
            direction LR
            S3[Service] --- D3[KUMA-DP]
            D3 <-.-> D4[KUMA-DP]
            D4 --- S4[Service]
        end
        BG1 -.-> D1 & D3
    end

    subgraph M2[Team 2 service mesh]
        BG2[Built-in gateway]
        subgraph sg2a[ ]
            direction LR
            S5[Service] --- D5[KUMA-DP]
            D5 <-.-> D6[KUMA-DP]
            D6 --- S6[Service]
        end
        subgraph sg2b[ ]
            direction LR
            S7[Service] --- D7[KUMA-DP]
            D7 <-.-> D8[KUMA-DP]
            D8 --- S8[Service]
        end
        BG2 -.-> D5 & D7
    end

    KGW --> BG1 & BG2
    BG1 <-.-> BG2

    linkStyle 0,1,3,4,6,9,11,12,14,17,18 stroke-width:2px!important,stroke:#86e2cc!important
    linkStyle 2,5,7,8,10,13,15,16,19 stroke-width:3px!important

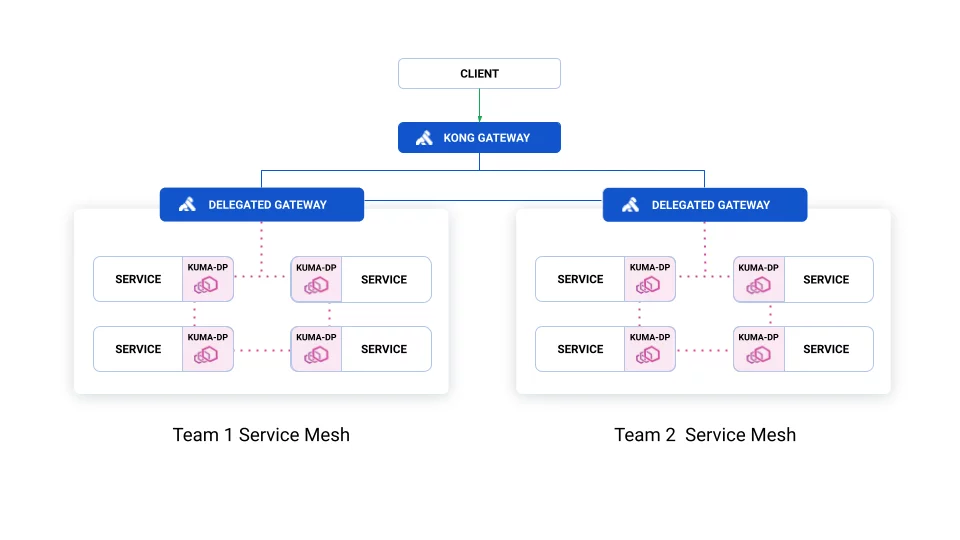

Kong Gateway routes directly to delegated gateways that operate as data plane proxies inside each service mesh.
